SCHUNK - Magnetic gripper EMH, size: RP 036, electric

SCHUNK GmbH & Co. KG
Son Efektörler
Parça No.: RBTX-SNK-0076

EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.

Normal teslimat süresi: 3 hafta
‌
Max Gripping force
530
N
Weight
1
kg

Önemli başlıklar

https://a.storyblok.com/f/298593/fc10cdc61d/rbtx_tool_icon_v1_lil_-svg.svg

Technical details

  • Holding force [N] - 530

  • Magnetic surface [cm²] - 6.08

  • Payload with horizontal magnetic surface [kg] - 8.5

  • Payload with vertical magnetic surface [kg] - 3.5

  • Module temperature increase at 5 activations/minute [°C] - 10

  • Module temperature increase at 15 activations/minute [°C] - 25

  • Activation time [ms] - 300

  • Min. ambient temperature [°C] - 5

  • Max. Ambient temperature [°C] - 50

  • Dead weight [kg] - 1

  • Protection class IP - 52

  • Rated voltage [V] - 24

  • Voltage type - DC

  • Max. Current Power [A] - 3.1

  • Max. Current Power [A] - 0.15

  • Controller electronics - integrated

https://a.storyblok.com/f/298593/4427329c88/2023-07-27_16_41_47-fwebp-b1440__1315__1440__und_9_weitere_seiten_-_gesch__ftlich_____microsoft_edge.jpg

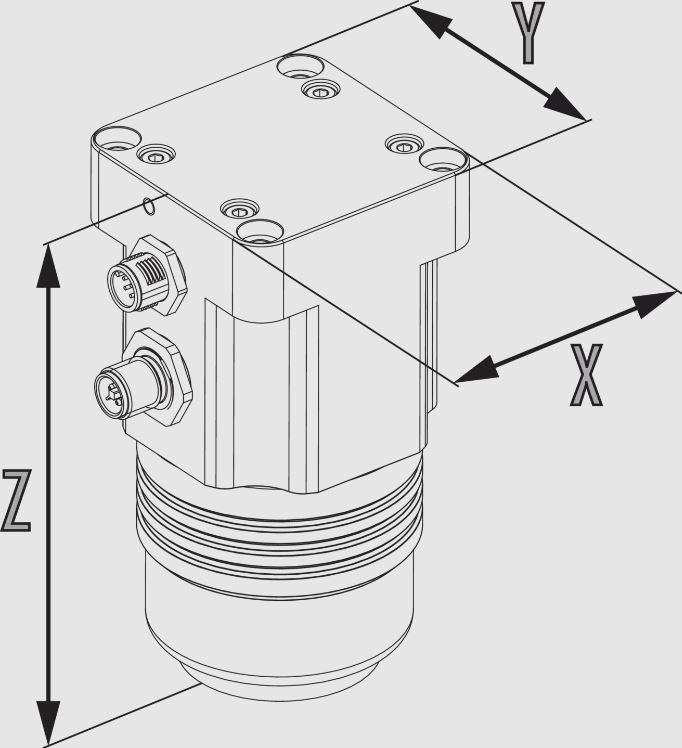

Dimensions
